Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. [cite: 1] For real-time technical data and confirmed fitment, please contact our expert team. [cite: 2]
Technical Specifications:
- Fits Brand: Caterpillar (CAT), SANY [cite: 3]
- Compatible Models: CAT 330 Series, SANY 375, SANY 385 [cite: 3]
- Material: High-Strength Forged/Cast Alloy Steel [cite: 3]
- Internal Socket Dimensions: Width 9.8CM x Height 9.7CM
Comparison Table:
| Tooth Variant | Weight (KG) | Length (CM) | Application |
|---|---|---|---|

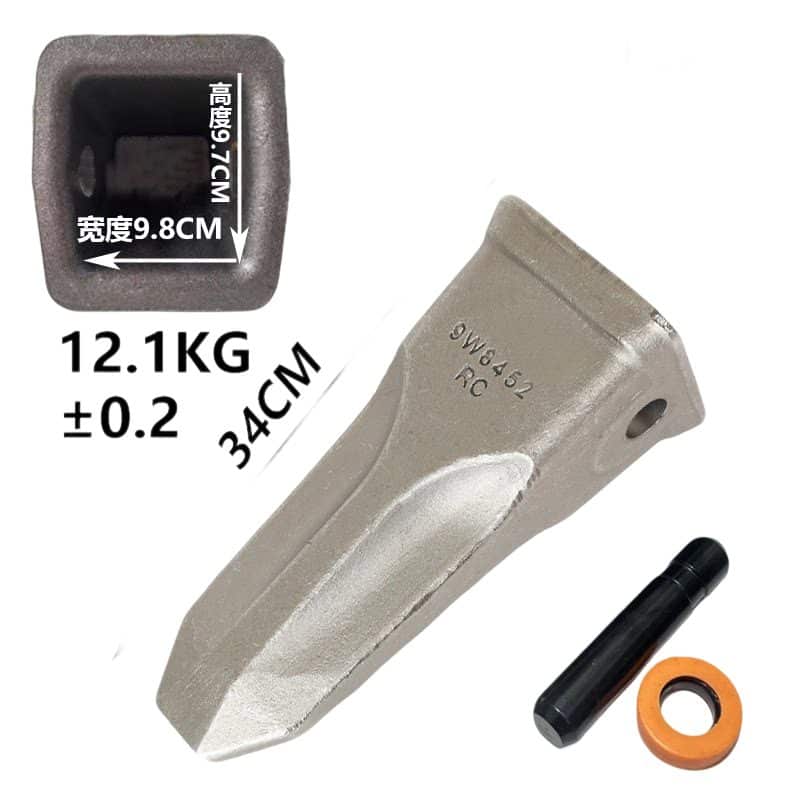

| Light Rock Tooth | 12.1 ¡À 0.2 | 34.0 | Standard Rock/Gravel |
| Standard Rock Tooth | 12.9 ¡À 0.2 | 35.5 | General Purpose Excavation |

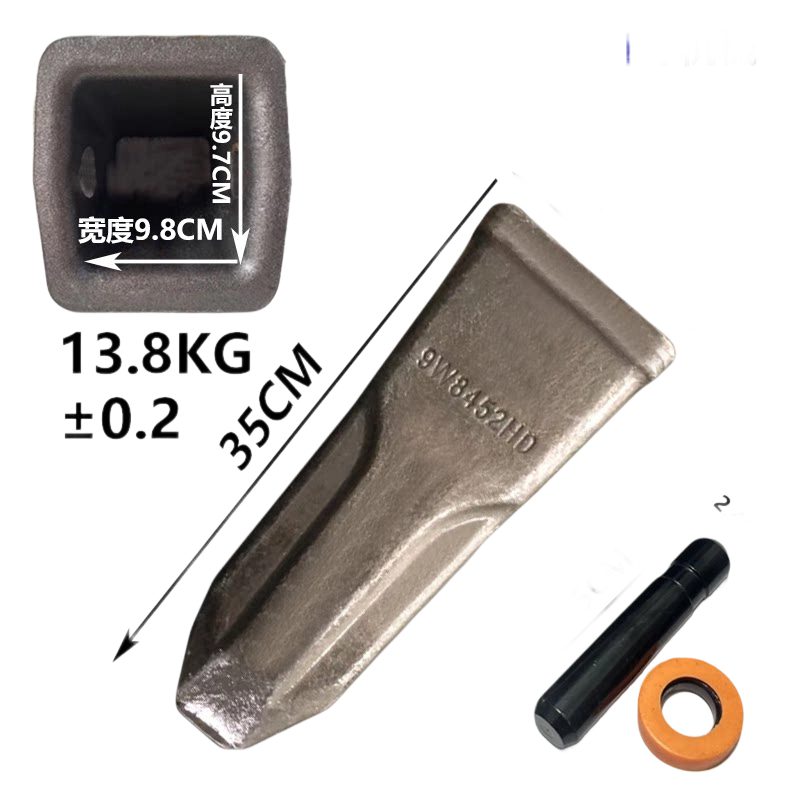

| Heavy Duty Rock Tooth | 13.8 ¡À 0.2 | 35.0 | High Abrasion Environments |

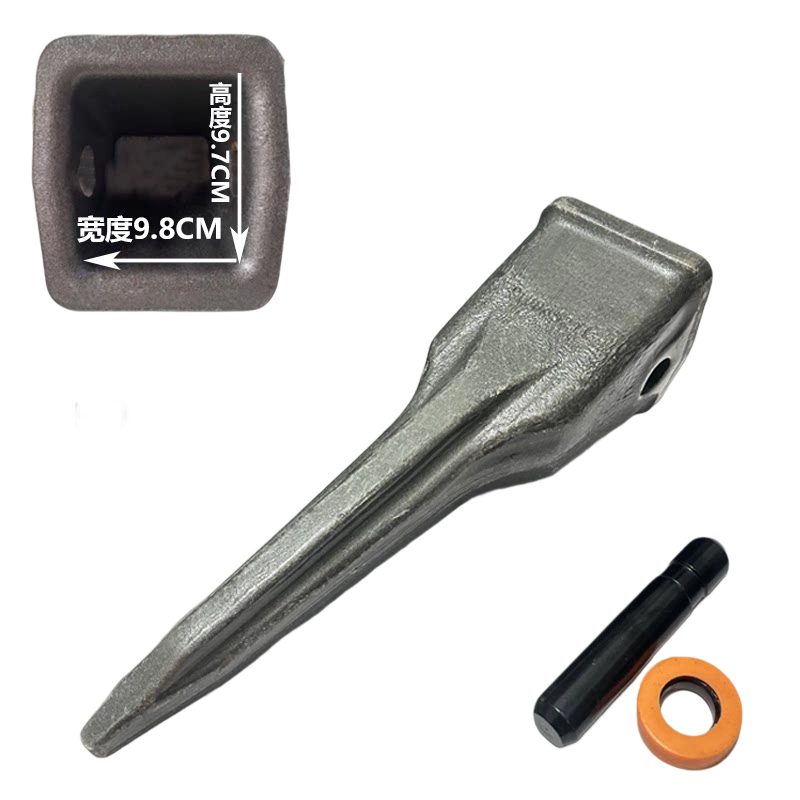

| Standard Ice/Penetrator | 11.0 ¡À 0.2 | 42.5 | Frozen Soil/Hard Clay |

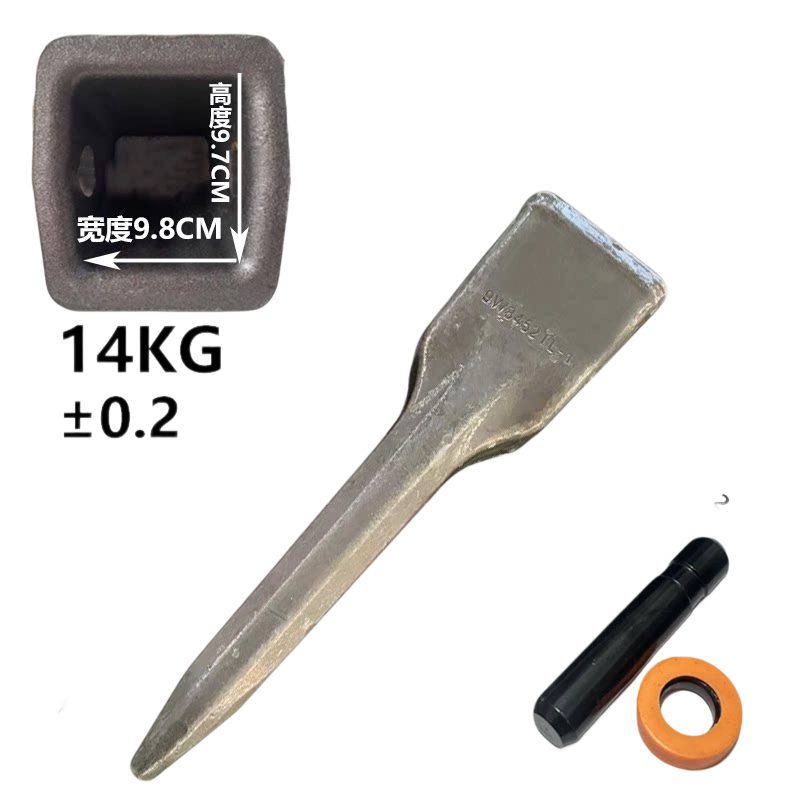

| Heavy Duty Ice/Penetrator | 14.0 ¡À 0.2 | 45.5 | Hard Rock/Ice Breaking |
Operational Recommendations:
- Rock Teeth (RC/HD): Optimized for high-impact resistance in hard rock and granite. [cite: 5]
- Ice/Penetrator Teeth: Designed for maximum penetration in frozen ground or extremely compact soil. [cite: 5]
Hardware & Accessories
- Bucket Pin: 13.5CM (L) x 2.4CM (D)
- Retainer: Heavy-duty rubber-core washer included. [cite: 6]
- Adapter: Reinforced cast adapter compatible with 330/375/385 bucket lips.
