Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our expert team.
Technical Specifications:
- Fits Brand: Caterpillar (CAT), SANY
- Compatible Models: CAT 330, SANY 375, SANY 385
- Material Grade: High-Strength Alloy Steel
- Internal Socket Dimensions: Width 9.8CM x Height 9.7CM
- Base Width: 13.1CM
Comparison Table:
| Tooth Variant | Weight (KG) | Length (CM) | Primary Application |
|---|---|---|---|

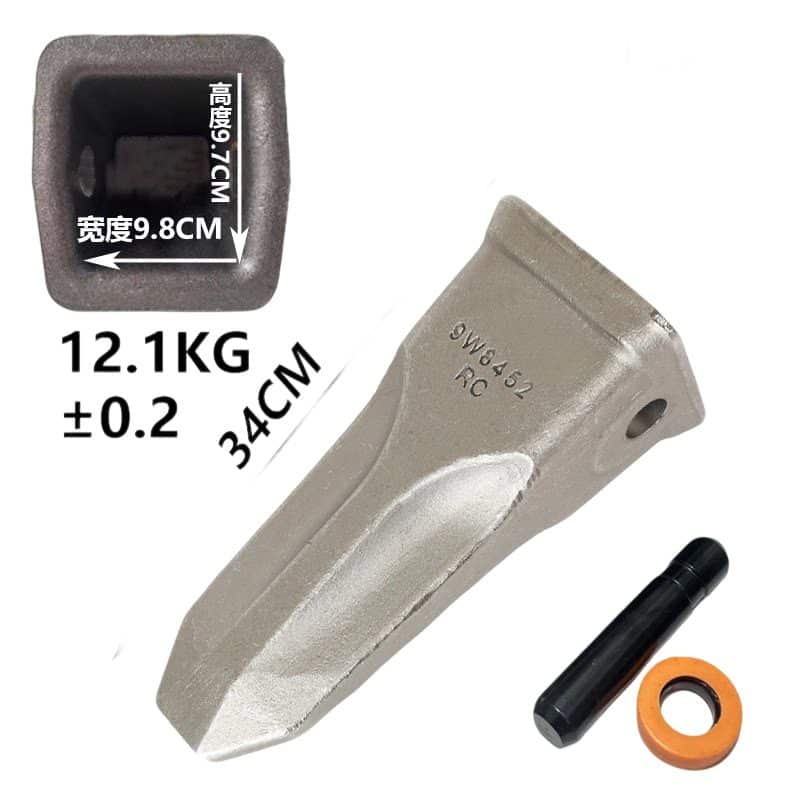

| Light Rock Tooth | 12.1 ¡À 0.2 | 34.0 | Standard Excavation |
| Standard Rock Tooth | 12.9 ¡À 0.2 | 35.5 | General Purpose |

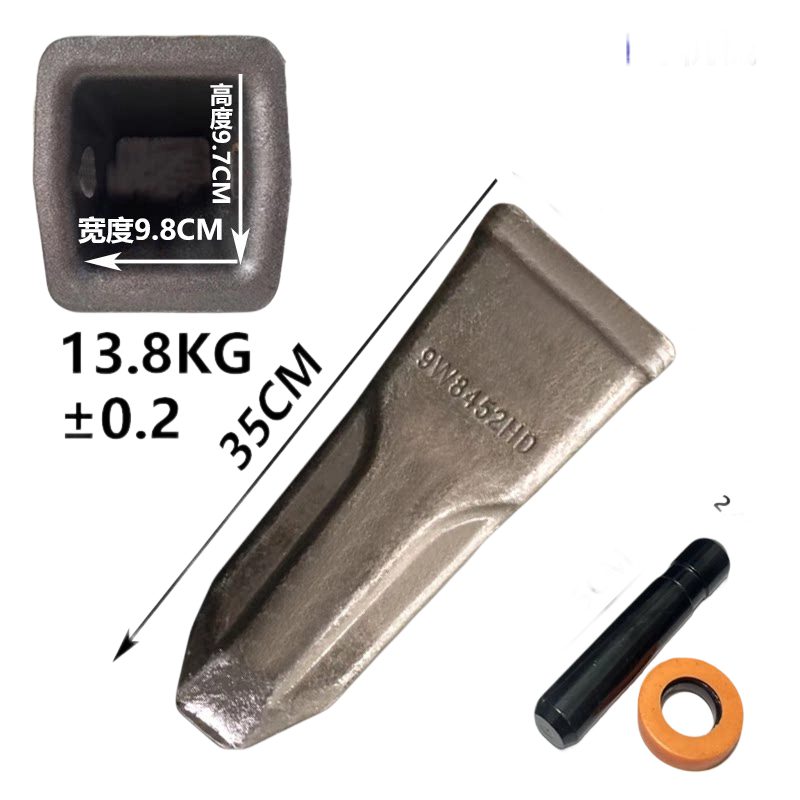

| Heavy Duty Rock Tooth | 13.8 ¡À 0.2 | 35.0 | Abrasive Environments |

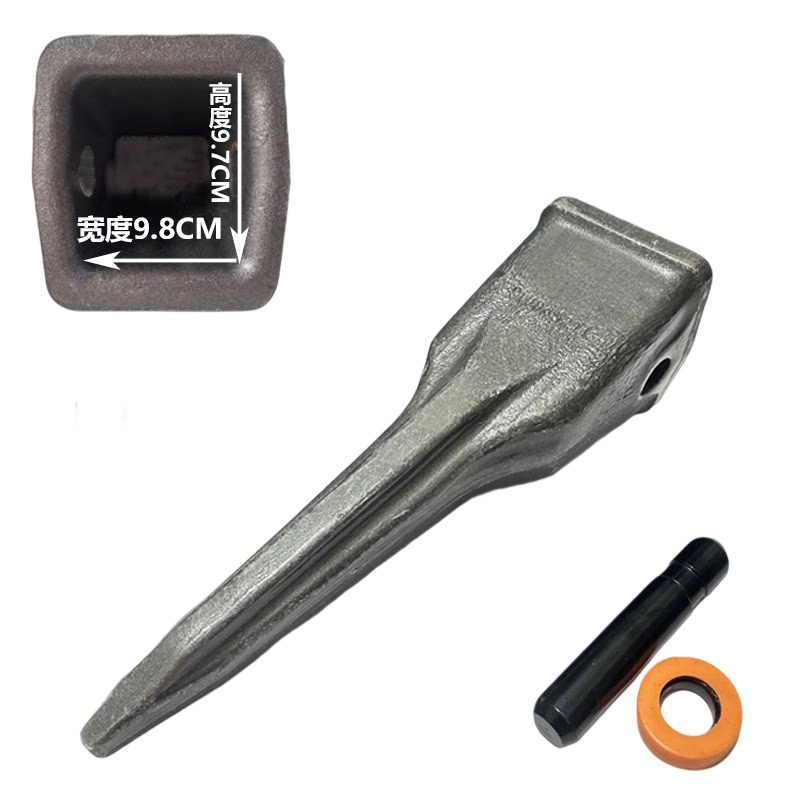

| Standard Ice Tooth | 11.0 ¡À 0.2 | 42.5 | Penetration / Frozen Soil |

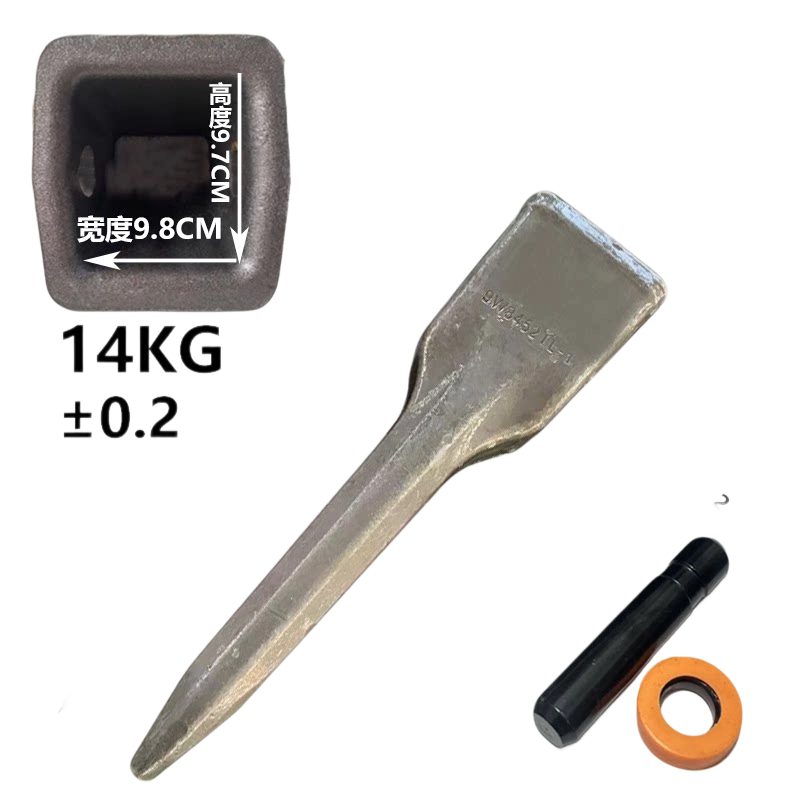

| Heavy Duty Ice Tooth | 14.0 ¡À 0.2 | 45.5 | Maximum Penetration |
Operational Recommendations:
- Hard Rock: Use Rock series teeth (Light/Standard/HD) for high-impact durability.
- Sandy/Frozen Soil: Ice series penetrator teeth are recommended for efficient material displacement.
Hardware & Accessories
- Bucket Pin: 13.5CM (Length) x 2.4CM (Diameter).
- Retainer: Heavy-duty locking washer included for secure fitment.

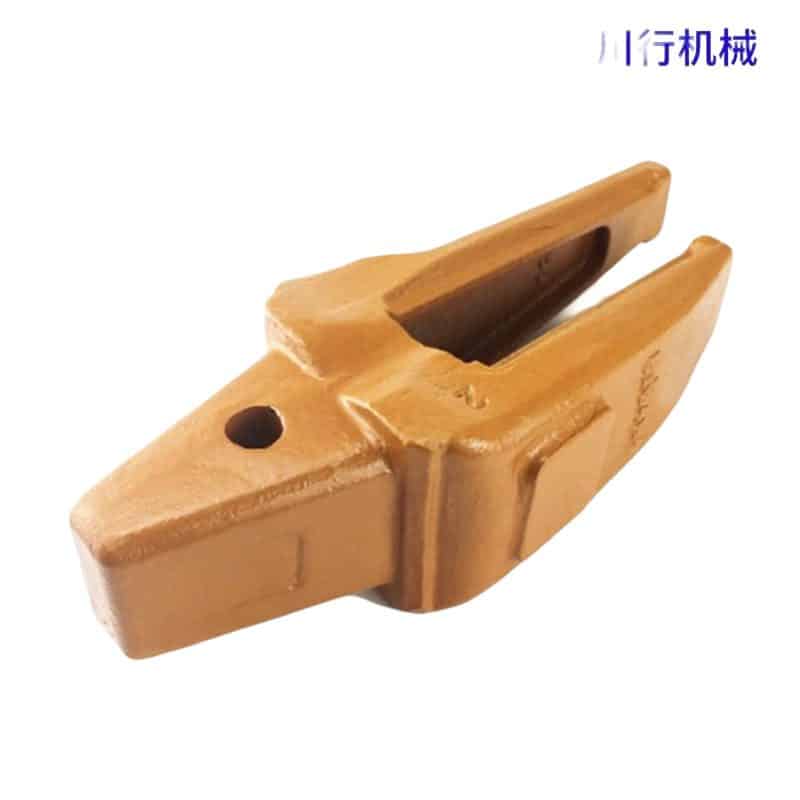

- Adapter: Reinforced cast adapter compatible with 330/375/385 series bucket lips.
