Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our expert team.
Technical Specifications:

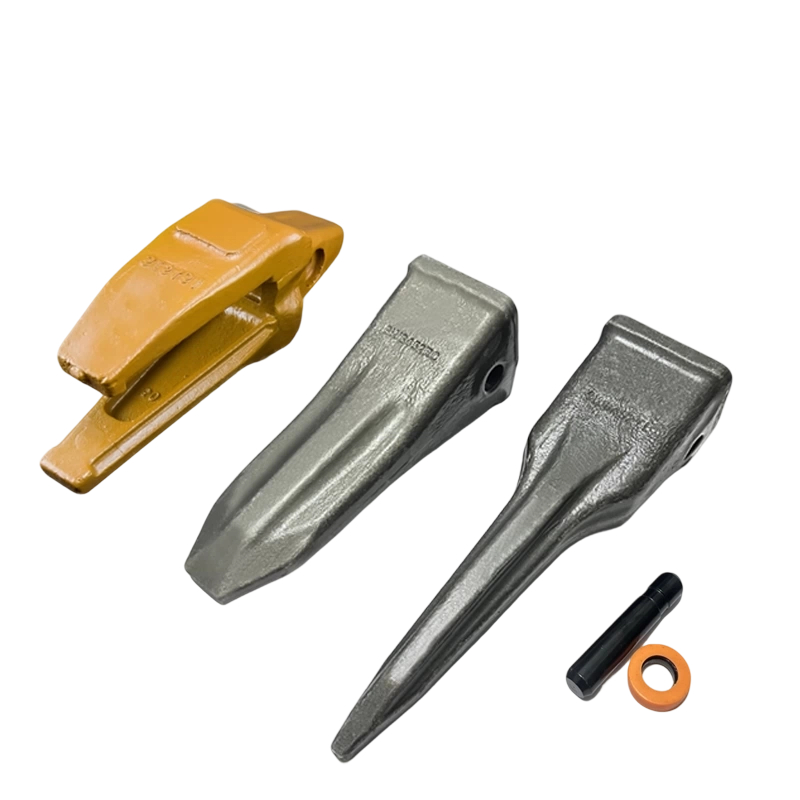

- Fits Brand: Caterpillar (CAT), Sany, XCMG
- Compatible Models: CAT E330, E375, E385; Sany SY335; XCMG 370, 400DK
- Part Number: 9W8452 / 9W8452RC / 9W8452HD (Ref. Only)
- Material: Premium Forged Manganese Alloy Steel
- Manufacturing Process: High-Precision Forging
Comparison Table:
| Tooth Type | Length (mm) | Weight (kg) | Pocket Size (W*H) |
|---|---|---|---|

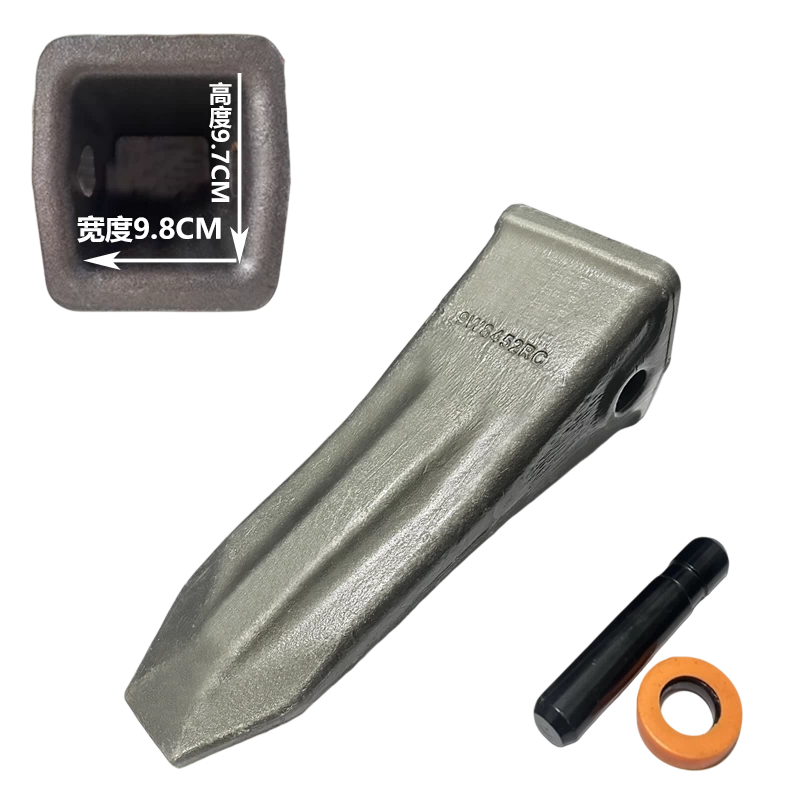

| Standard Rock Chisel (RC) | 340mm / 355mm | 12.1kg / 12.9kg | 98mm * 97mm |
| Heavy Duty Abrasion (HD) | 350mm | 13.8kg | 98mm * 97mm |

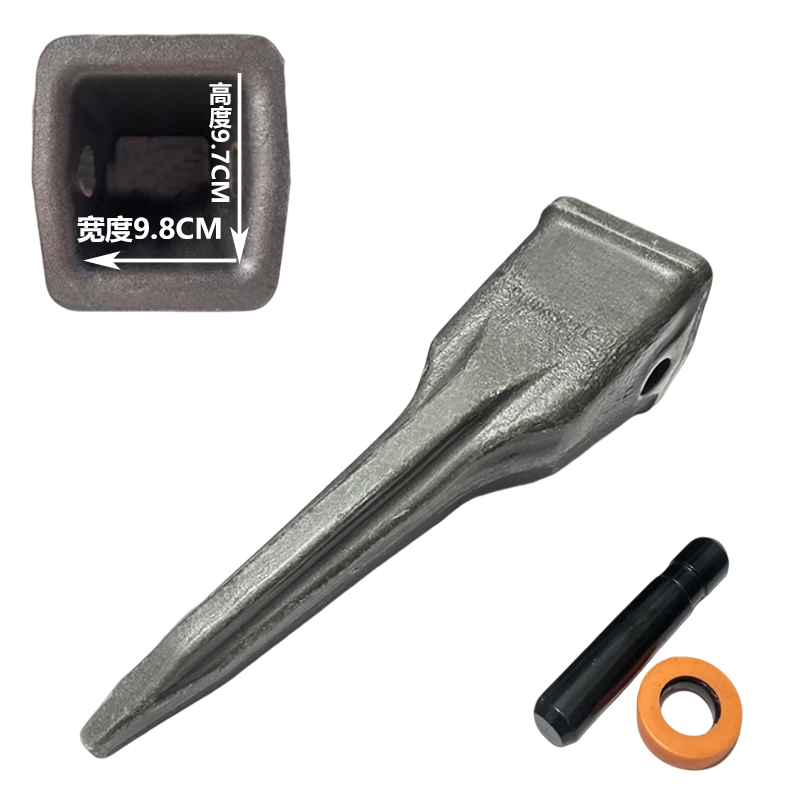

| Tiger/Penetrator Tooth (TL) | 425mm | 11.0kg | 98mm * 97mm |

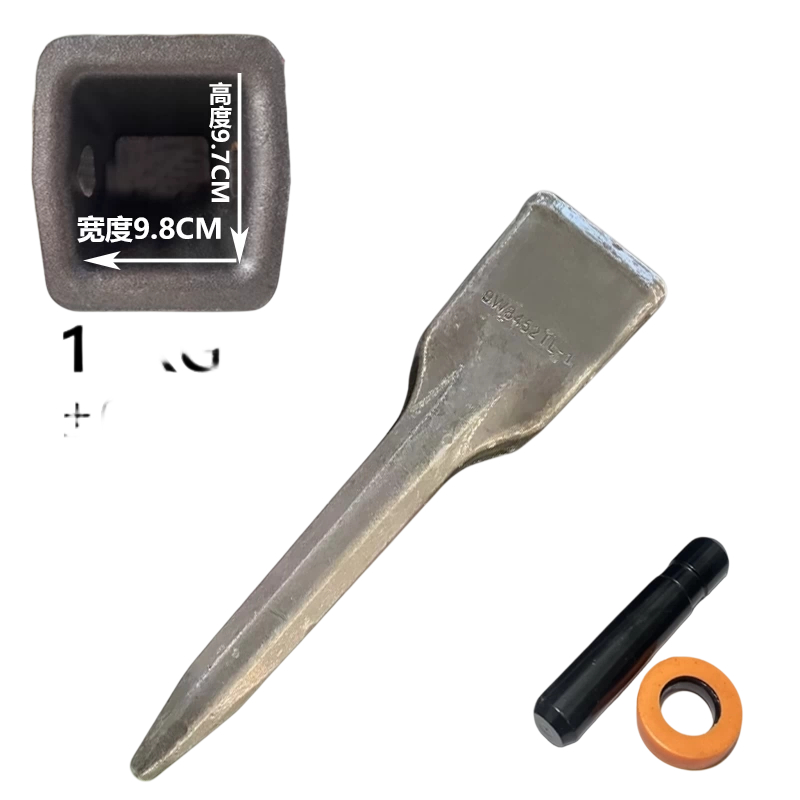

| Extra Sharp Penetrator | 455mm | 14.0kg | 98mm * 97mm |
Operational Recommendations:
Rock Chisel & HD: Ideal for high-impact applications, fractured rock, and abrasive soil conditions.
Penetrator/Tiger Tooth: Recommended for tightly compacted soils, clay, and frost-breaking where maximum penetration is required.
Hardware & Accessories:
- Locking Pin: 135mm Length / 24mm Diameter
- Retainer/Seal: Heavy-duty rubber/steel composite
