Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our expert team. [cite: 105, 106]
Warning: For Doosan DX series, please verify specifications with our team before ordering as dimensions may differ from the DH series. [cite: 173, 205]
Technical Specifications:
- Fits Brand: Sany, Doosan, Daewoo
- Model Compatibility: 195, 200, 205, 215, 225 [cite: 160, 172, 220]
- Material Grade: High-Strength Forged Manganese Alloy [cite: 170, 173, 221]
- Internal Socket Dimensions: 7.4CM (Width) x 6.3CM (Height) [cite: 180, 222, 223, 252, 253]
Comparison Table:

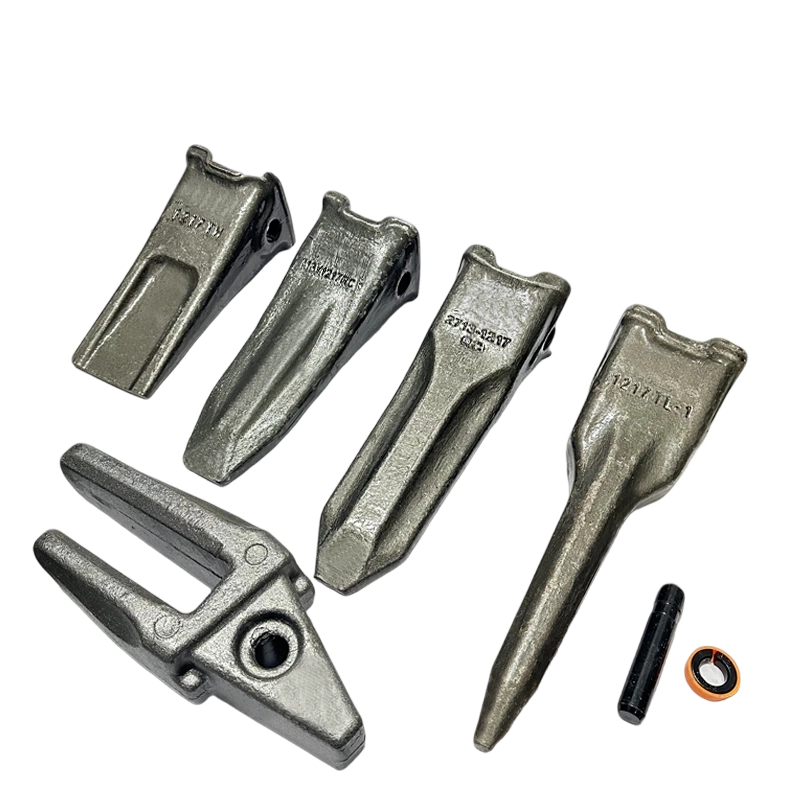

| Tooth Profile | Length (cm) | Weight (kg) | Part No. (Ref) |
|---|---|---|---|

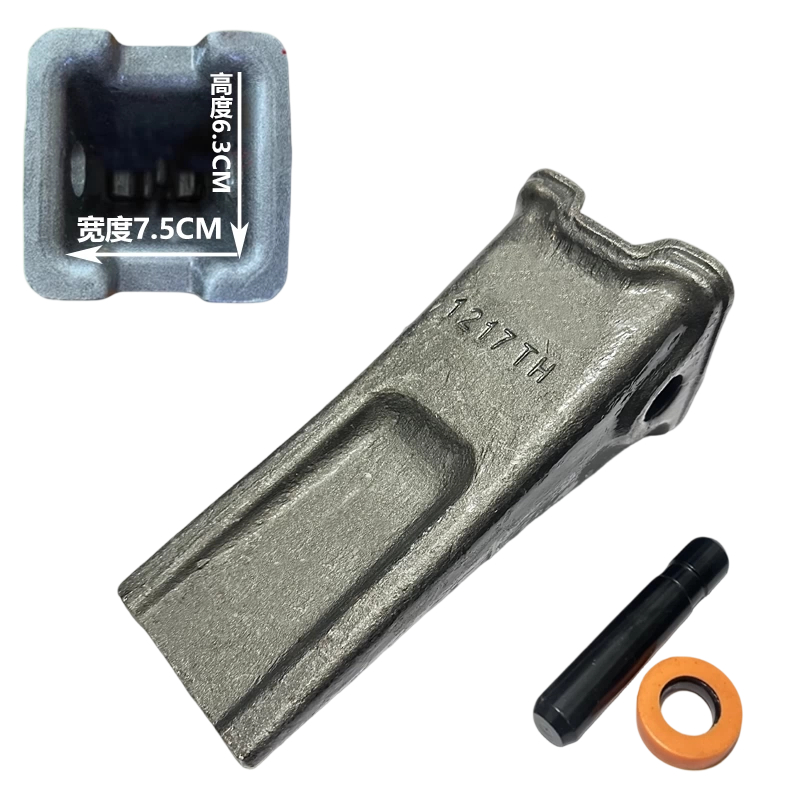

| Standard Flat | 22.3 CM | N/A | 1217TH |
| Pointed (Rock) | 25.8 CM | 4.6 KG | 1217RC |
| Thickened Pointed | 27.5 CM | 5.4 KG | 113V1217RC |
| Extra Sharp Pointed | 30.0 CM | 6.6 KG | 3713-1217RC |
| Extra Sharp Penetration | 30.5 CM | 4.7 KG | 1217T |

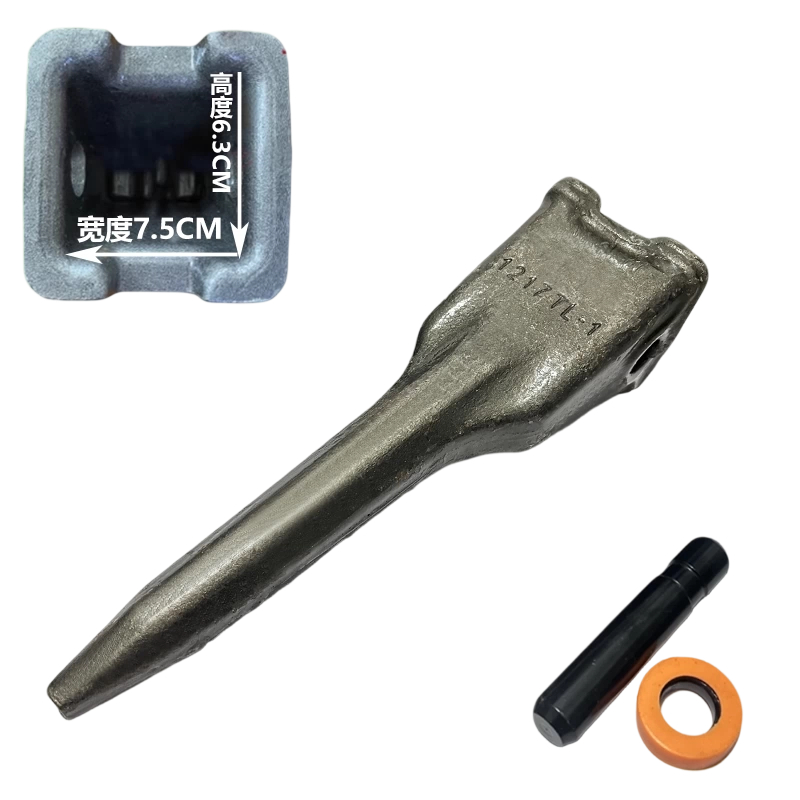

| Heavy Duty Extra Sharp | 34.0 CM | 5.3 KG | 1217TL-1 |
*Dimensions measured manually; 1-2mm variance may occur. [cite: 183]
Operational Recommendations:
- Standard Flat: Best for soil, clay, and general earthmoving tasks. [cite: 197]
- Pointed/Rock Profiles: Specialized for high-impact rock excavation and earthwork. [cite: 197]
- Extra Sharp Profiles: Optimized for ice breaking and high penetration in hard-packed ground. [cite: 197]
Hardware & Accessories:
- Tooth Pin: 2.0CM Diameter x 10.5CM Length (Grade 40Cr Steel). [cite: 181, 206, 234, 235]
- Retainer: Standard rubberized lock ring (0.8CM x 3.2CM). [cite: 182]
