Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our expert team.
Technical Specifications:
- Fits Brand: XCMG
- Compatible Models: XE55, XE60, XE75, XE80 (DA Series)
- Material: Premium Forged Alloy Steel
- Manufacturing Process: High-Pressure Forging for superior density and impact resistance.
- Hardness: 48-52 HRC (Approx.)
Comparison Table:
| Type | Compatible Model | Length (L) | Width (W) | Socket Size (H x W) |
|---|---|---|---|---|

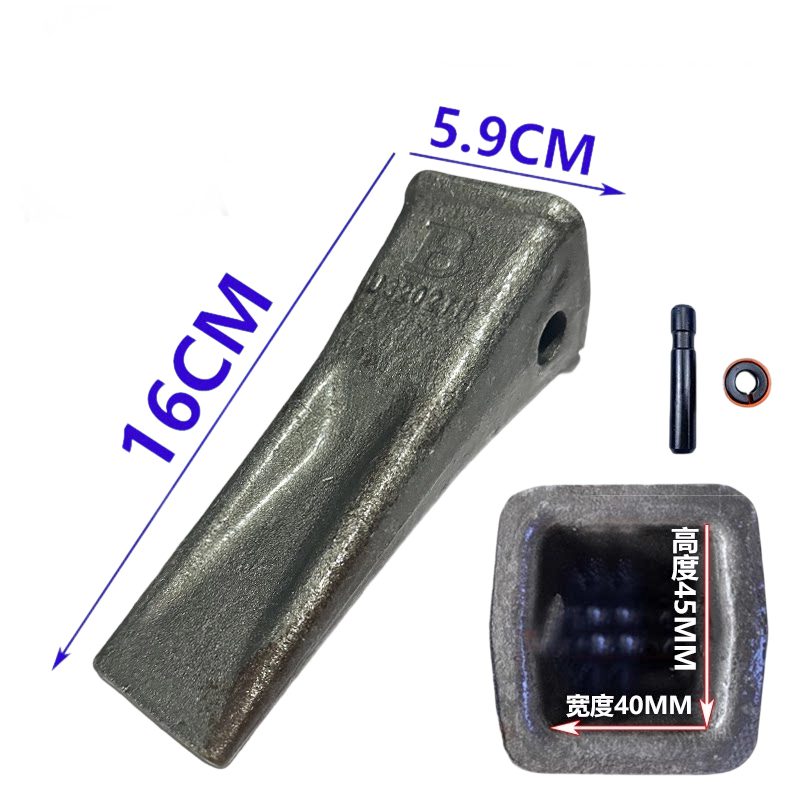

| Standard Flat Tooth | XE55 / XE60 | 16.0 cm | 5.9 cm | 45mm x 40mm |

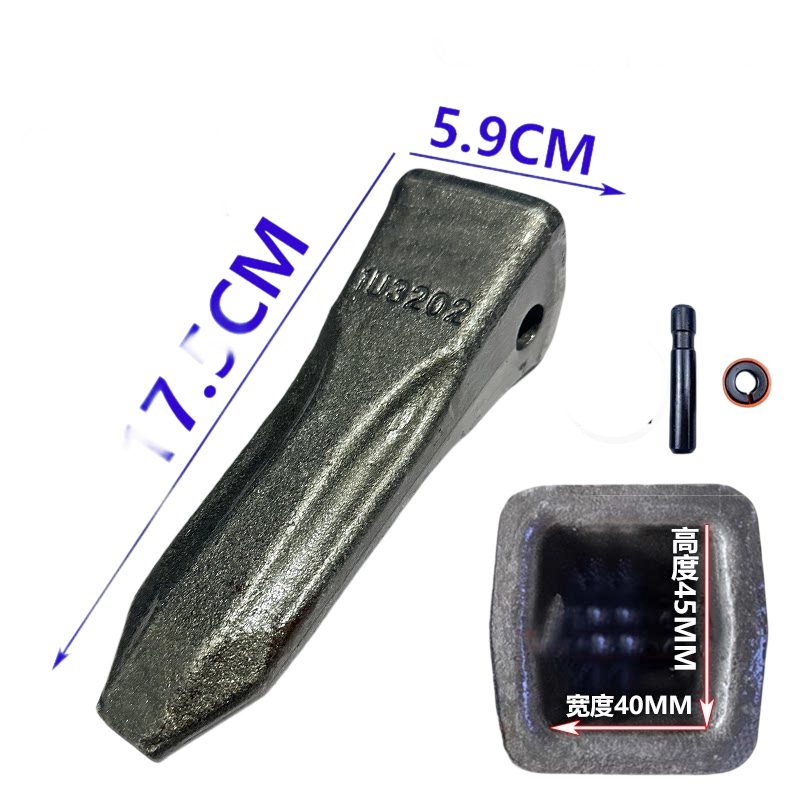

| Tiger Tooth (Pointed) | XE55 / XE60 | 17.5 cm | 5.9 cm | 45mm x 40mm |

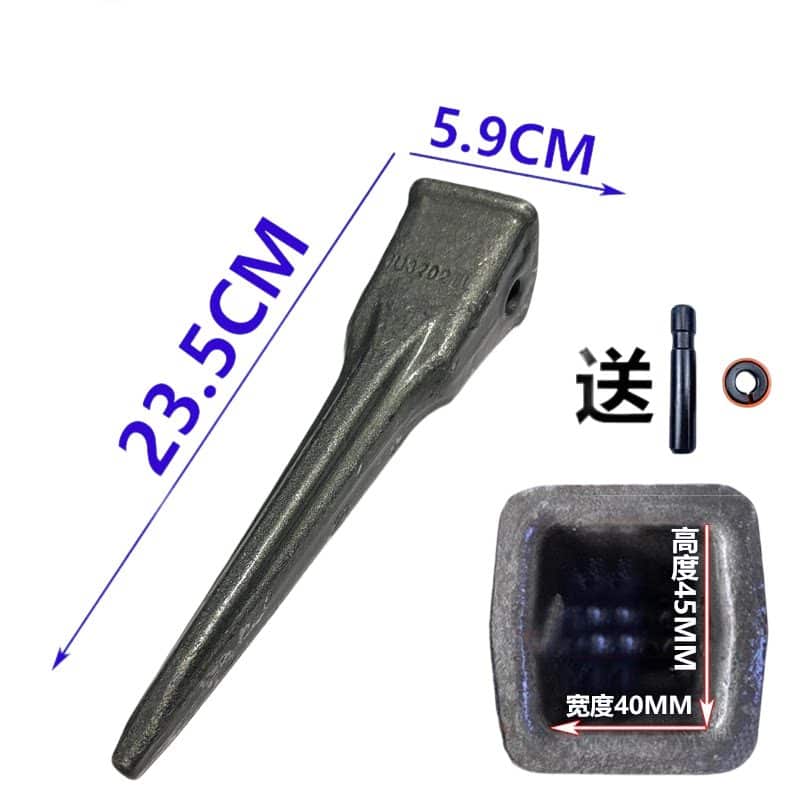

| Rock Penetrator (Extra Long) | XE55 / XE60 | 23.5 cm | 5.9 cm | 45mm x 40mm |
| Standard Flat Tooth | XE75 / XE80 | 18.2 cm | 6.6 cm | 58mm x 48mm |
| Tiger Tooth (Pointed) | XE75 / XE80 | 19.5 cm | 6.6 cm | 58mm x 48mm |
| Rock Penetrator (Extra Long) | XE75 / XE80 | 24.5 cm | 6.6 cm | 58mm x 48mm |
Operational Recommendations:
- Standard Flat: Best for general excavation, dirt, and loose gravel.
- Tiger/Pointed: Ideal for compact clay and frozen ground.
- Rock Penetrator: Recommended for high-impact rock layers and heavy-duty demolition.
Hardware & Accessories:
Each unit includes 1x Heavy-Duty Locking Pin (Vertical/Side Lock as per SKU) and 1x Rubber Retainer.
