Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our customer service team.
Technical Specifications:
- Fits Brand: Caterpillar (CAT), Sany
- Fits Models: E330, SY375, SY385
- Part Numbers: 9W8452 Series (Ref. Only)[cite: 5]
- Material: Forged Manganese Alloy Steel[cite: 5]
- Process: Precision Forging (Enhanced Grain Structure)[cite: 5]
Comparison Table:
| Tooth Type | Length (L) | Weight (kg) | Pocket (HxW) |
|---|---|---|---|
| Light Rock Penetrator | 34.0 cm | 12.1 ± 0.2 | 9.7 x 9.8 cm |

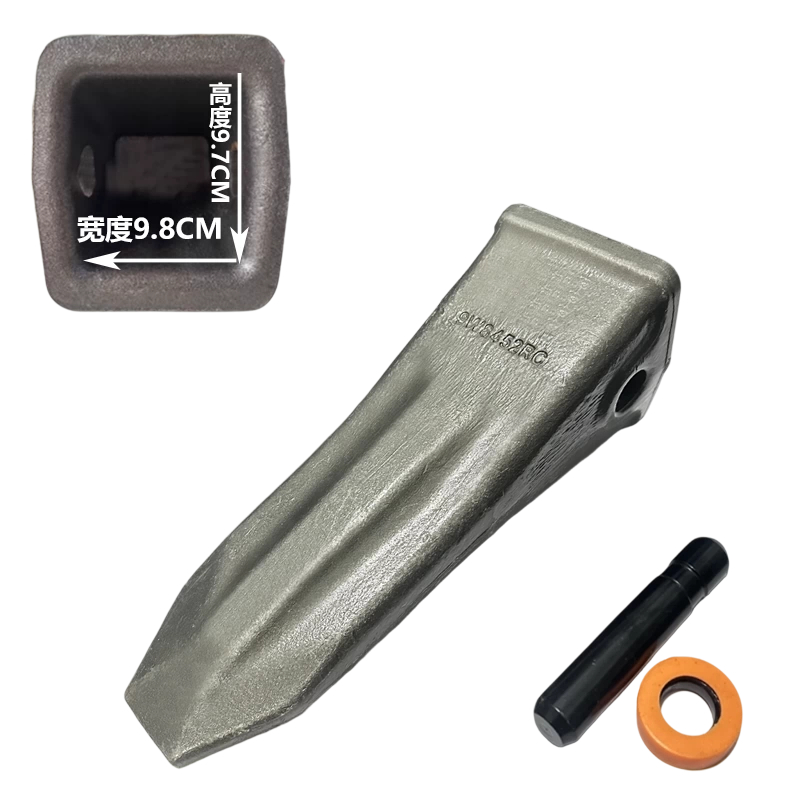

| Standard Rock Penetrator | 35.5 cm | 12.9 ± 0.2 | 9.7 x 9.8 cm |

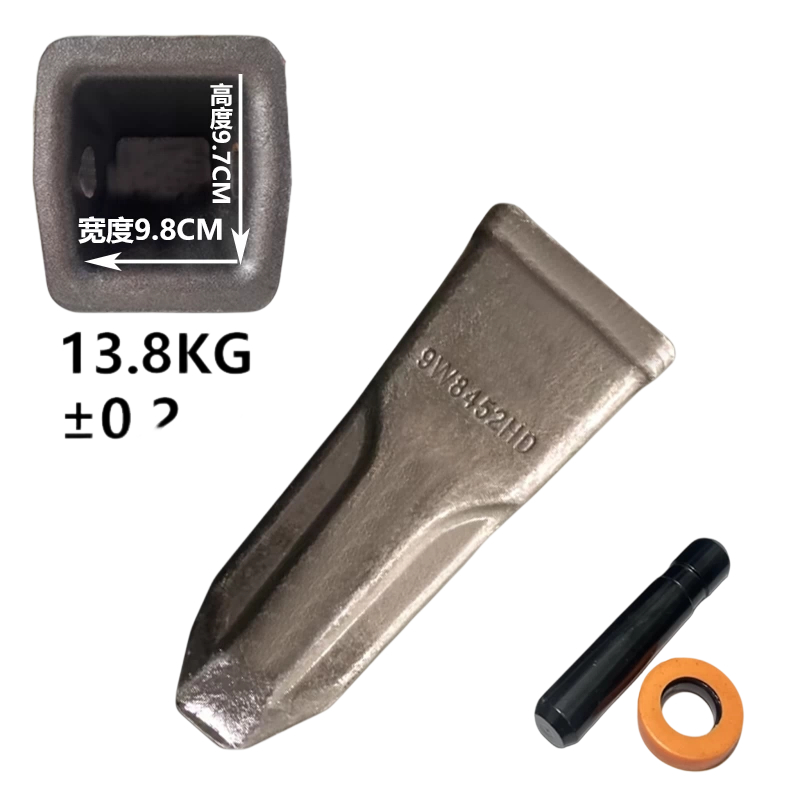

| Heavy Duty Abrasion | 35.0 cm | 13.8 ± 0.2 | 9.7 x 9.8 cm |

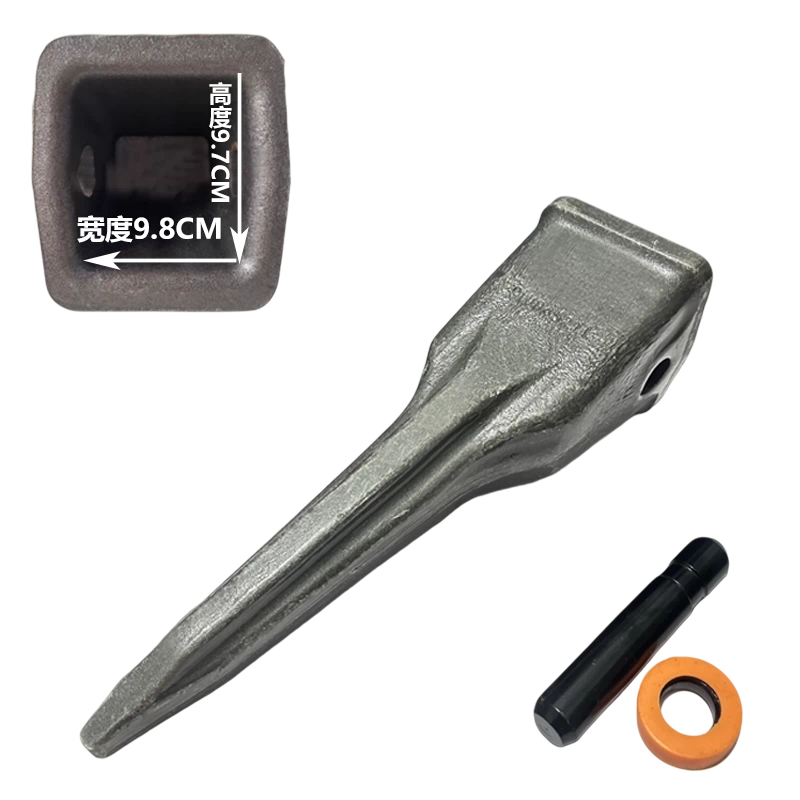

| Standard Tiger Tooth | 42.5 cm | 11.0 ± 0.2 | 9.7 x 9.8 cm |
| Heavy Duty Tiger Tooth | 45.5 cm | 14.0 ± 0.2 | 9.7 x 9.8 cm |
Operational Recommendations:
- Rock Penetrator (RC): Ideal for high-impact rock excavation and abrasive environments[cite: 5].
- Tiger Tooth (TL): Optimized for maximum penetration in frost, shale, and tightly compacted clay[cite: 5].
- Heavy Duty (HD): Maximum wear life for high-abrasion mining operations[cite: 5].
Hardware & Accessories
Compatible with standard side-pin locking systems[cite: 5]:
- Locking Pin: 2.4 cm (Diameter) x 13.5 cm (Length)[cite: 5]
- Retainer: Heavy-duty rubber-core steel washer included[cite: 5]
