Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our customer service team.
Technical Specifications:
- Fits Brand: SUNWARD
- Compatible Models: SEW135, SEW150, SEW155[cite: 4]
- Primary Part Number: 2713-1221 (Ref. Only)[cite: 4]
- Material: Forged Manganese Alloy Steel[cite: 4]

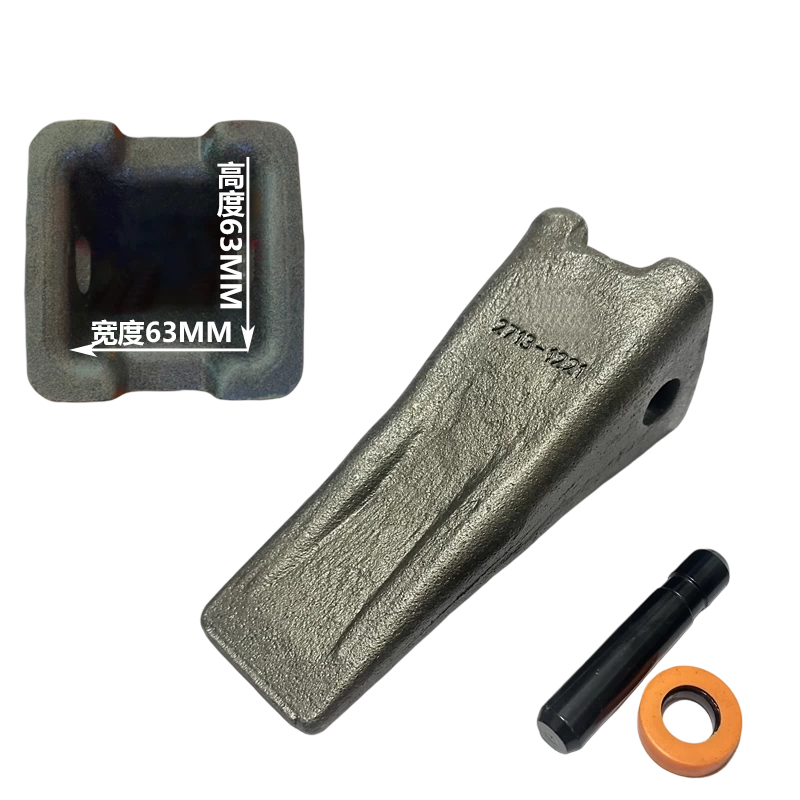

- Pocket Dimensions: 63mm (H) x 63mm (W)
Comparison Table:

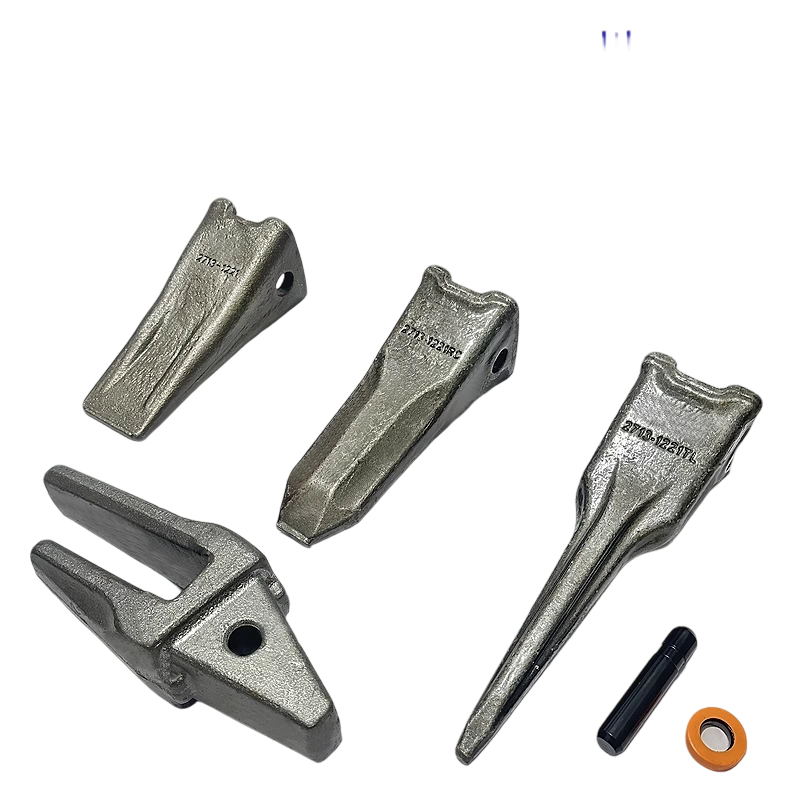

| Tooth Type | Part Number | Length (cm) | Profile |
|---|---|---|---|
| Standard Tooth | 2713-1221 | 21.3 cm | Standard Flat[cite: 1, 4] |

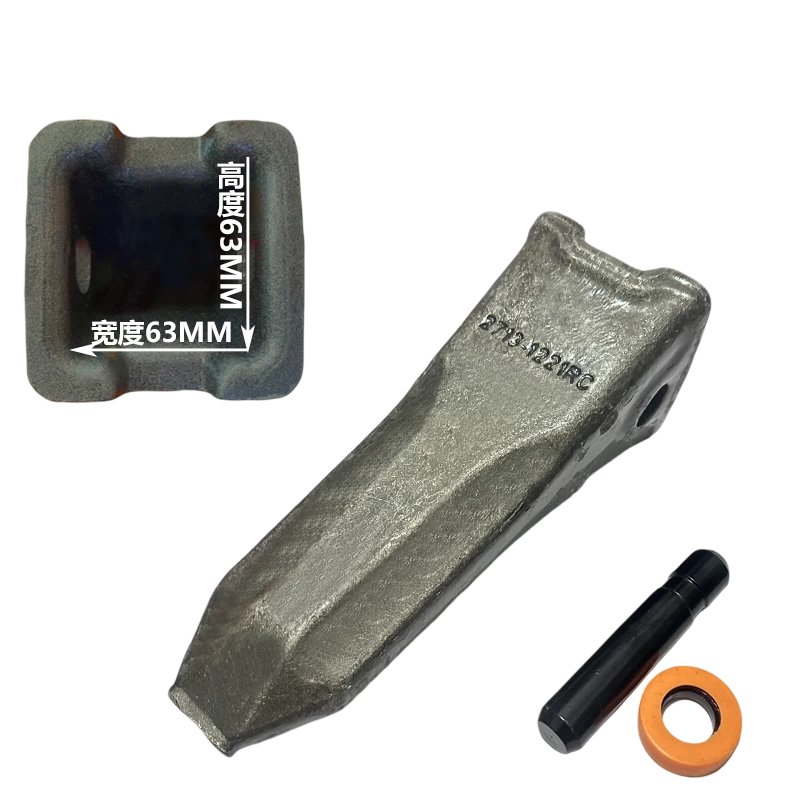

| Rock Chisel | 2713-1221RC | 23.0 cm | Reinforced Rock Point[cite: 4] |

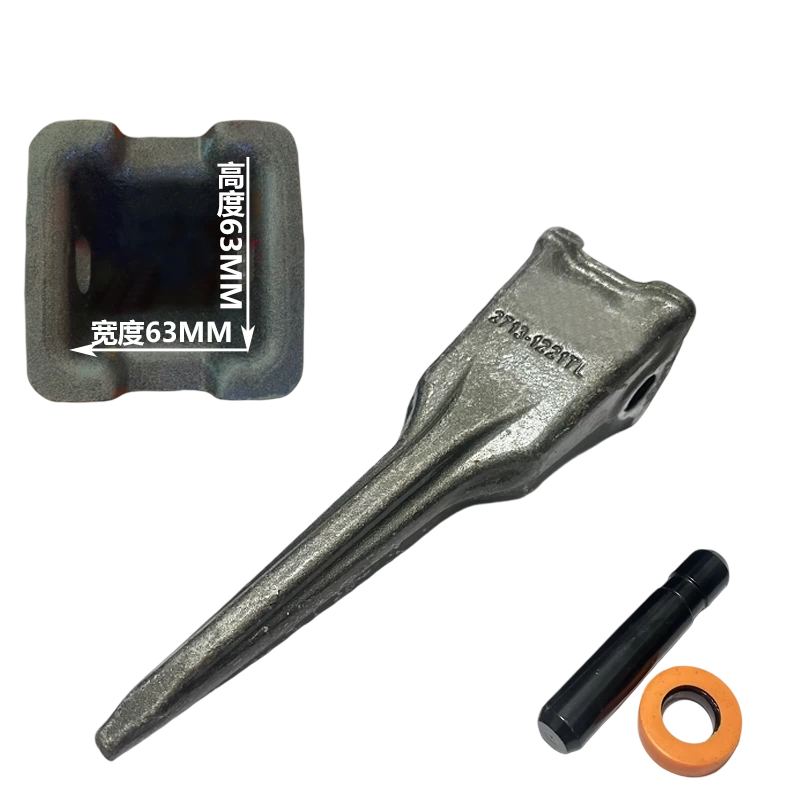

| Tiger Penetrator | 2713-1221TL | 26.5 cm | Sharp Single Point[cite: 4] |
| Long Penetrator | 2713-1221TL-L | 28.8 cm | Extended Sharp Point[cite: 4] |
Operational Recommendations:
- Standard/Flat: General purpose earthmoving, clay, and loose topsoil.[cite: 4]
- Rock Chisel (RC): High-impact applications, fractured rock, and abrasive materials.[cite: 4]
- Penetrator (TL): Hard-packed ground, frost, and shale where maximum penetration is required.[cite: 4]
Hardware & Accessories:
- Locking Pin: 8.0 cm (L) x 1.8 cm (D)[cite: 1, 4]
- Retainer: Heavy-duty rubber/steel lock ring included.[cite: 4]
- Compatible Adapter: 3.2 cm Gap / 1.85 cm Pin Hole.[cite: 4]
