Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our expert team.
Technical Specifications:
- Fits Brand: Kobelco
- Compatible Models: SK200, SK200-3, SK200-5, SK200-6, SK200-8, SK210
- Reference Part Numbers: SK200 (Standard), SK200RC (Rock), SK200TL (Tiger)
- Material: High-Strength Forged Alloy Steel
- Process: Precision Forging / Heat Treated
Comparison Table:
| Tooth Type | Length (mm) | Width (mm) | Socket (W x H mm) | Included Hardware |
|---|---|---|---|---|

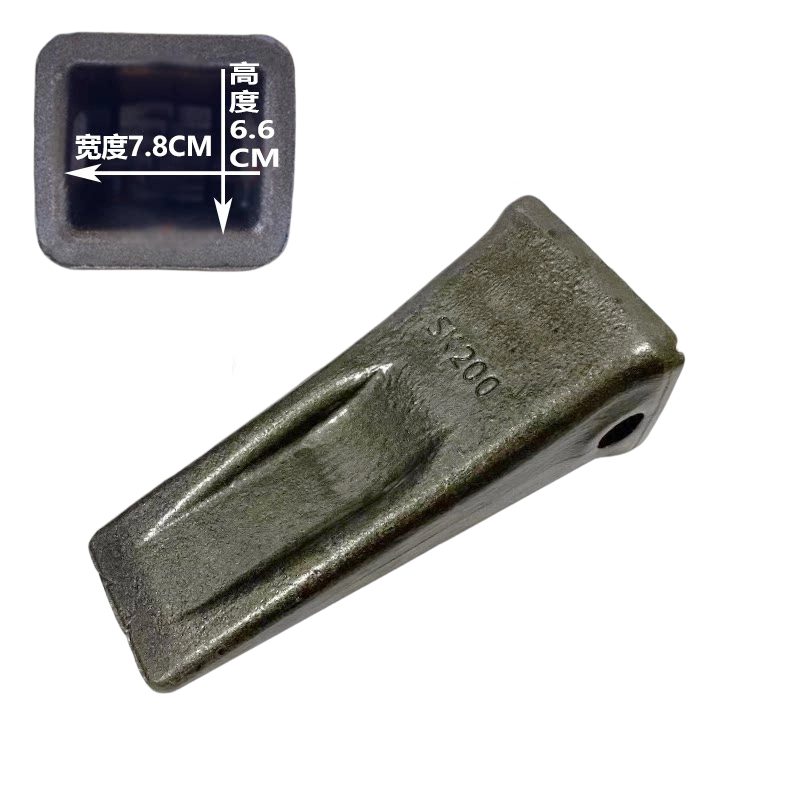

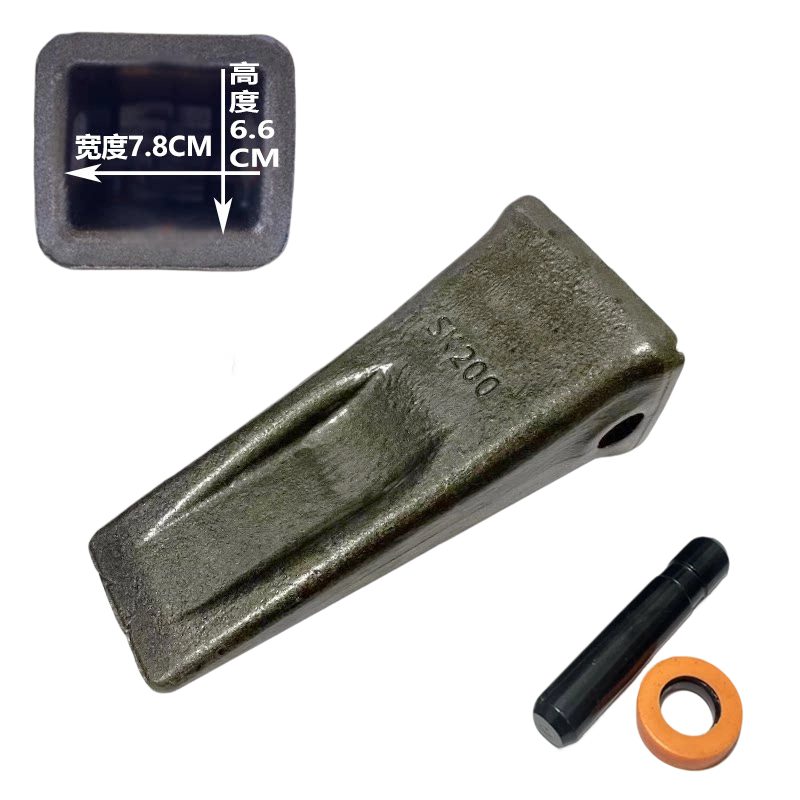

| Standard (Dirt) | 245 mm | 104 mm | 78 x 66 mm | Optional Pin & Retainer |

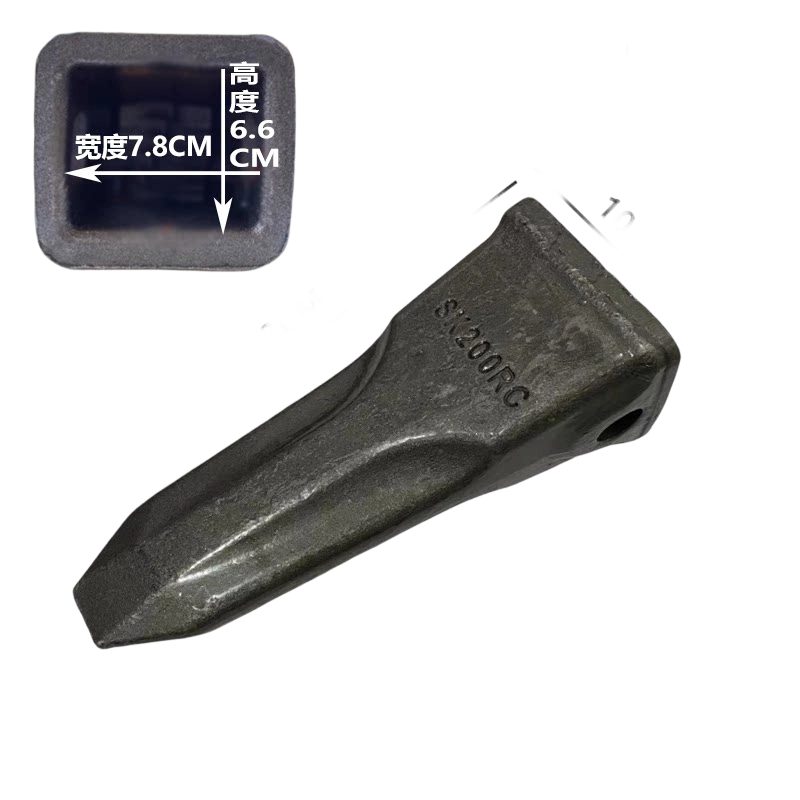

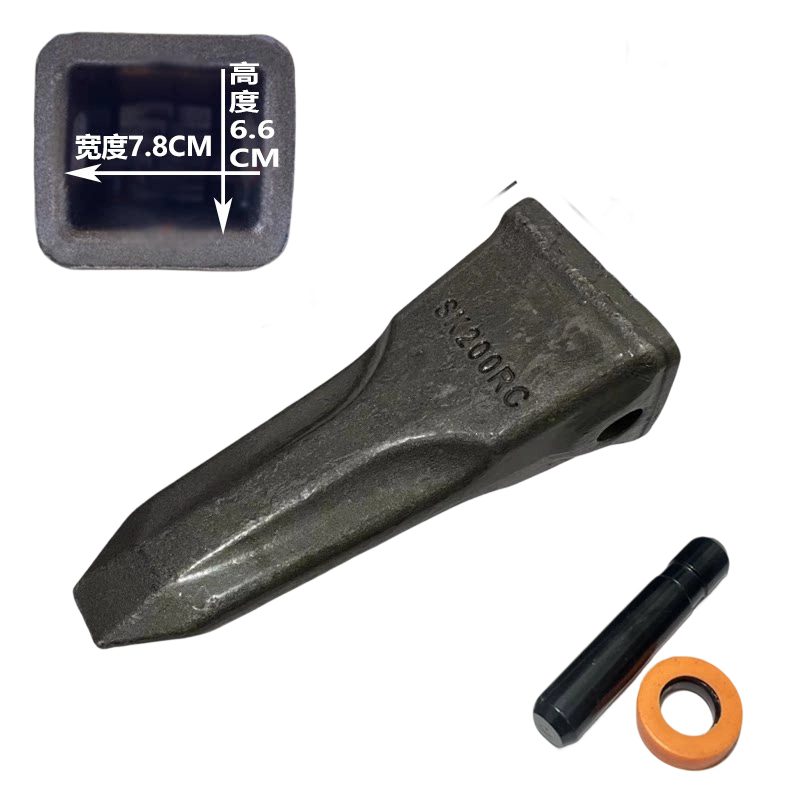

| Rock (RC) | 263 mm | 104 mm | 78 x 66 mm | Optional Pin & Retainer |

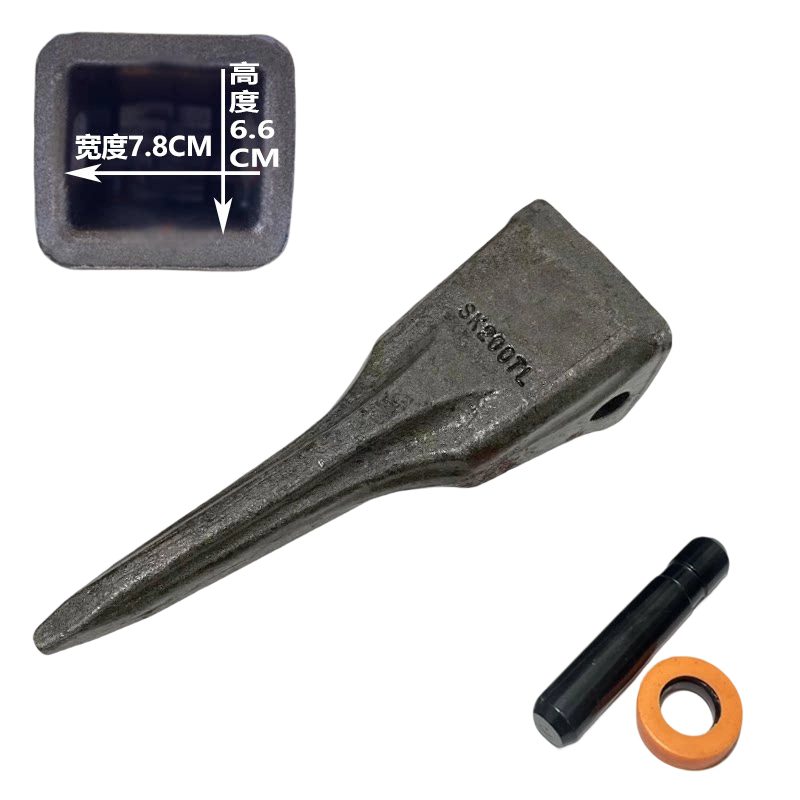

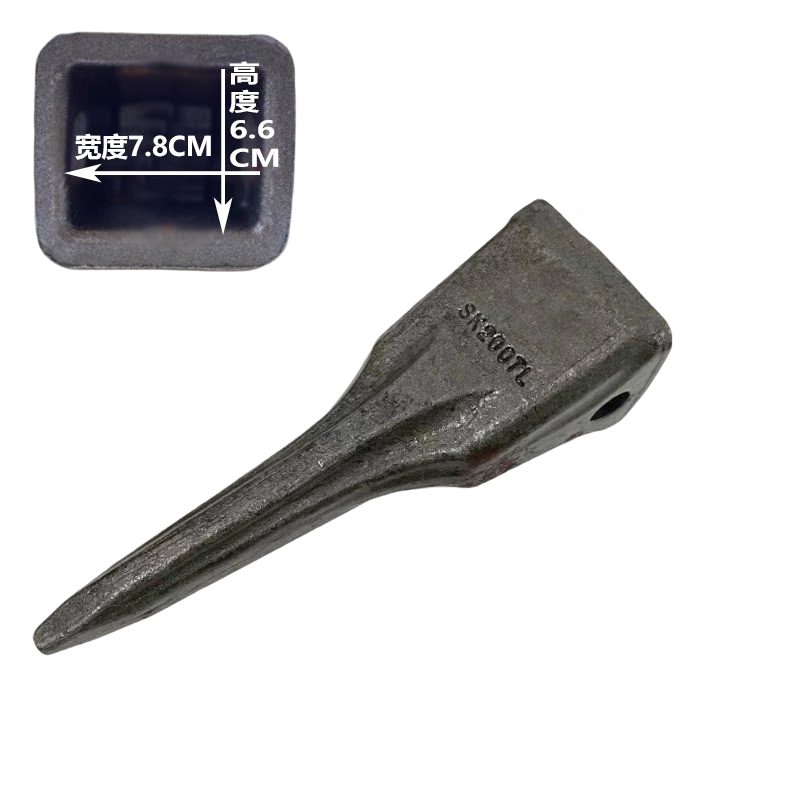

| Tiger (TL) | 313 mm | 104 mm | 78 x 66 mm | Optional Pin & Retainer |
Operational Recommendations:
- Standard Tooth: Ideal for general excavation, topsoil, and sandy clay.
- Rock Tooth (RC): Enhanced durability for fractured rock, caliche, and abrasive hardpan.
- Tiger Tooth (TL): Maximum penetration for frost, shale, and extremely compact soils.
Hardware & Accessories
- Bucket Pin: 110mm Length x 18mm Diameter
- Retainer: Heavy-duty rubber-steel reinforced washer included in “+ Pin” SKU variants.
