Notes:
Due to design variations and product updates, the specifications listed are for reference purposes only. For real-time technical data and confirmed fitment, please contact our customer service team.
Technical Specifications:
- Fits Brand: Hyundai[cite: 1, 2]
- Model Compatibility: HX55, HX60[cite: 1, 2]
- OEM Part Number: 68M7-31230[cite: 1, 2]
- Material: High-Grade Manganese Alloy Steel[cite: 1, 2]
- Manufacturing Process: Precision Forging (Manganese Alloy)[cite: 1, 2]
Comparison Table:
| Component | Dimension Type | Value (Metric) |
|---|---|---|
| Bucket Tooth | Total Length | 170 mm[cite: 1, 2] |
| Internal Socket Height | 43 mm[cite: 1, 2] | |
| Internal Socket Width | 48 mm[cite: 1, 2] | |
| Lock Pin | Pin Length | 65 mm[cite: 1, 2] |
| Pin Diameter | 14 mm[cite: 1, 2] |

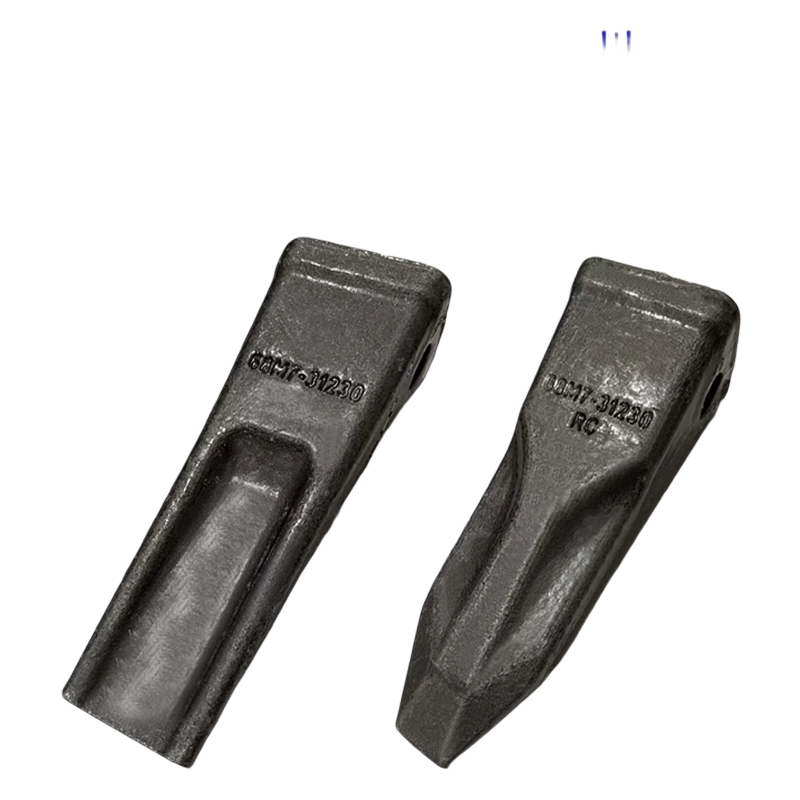

Operational Recommendations:

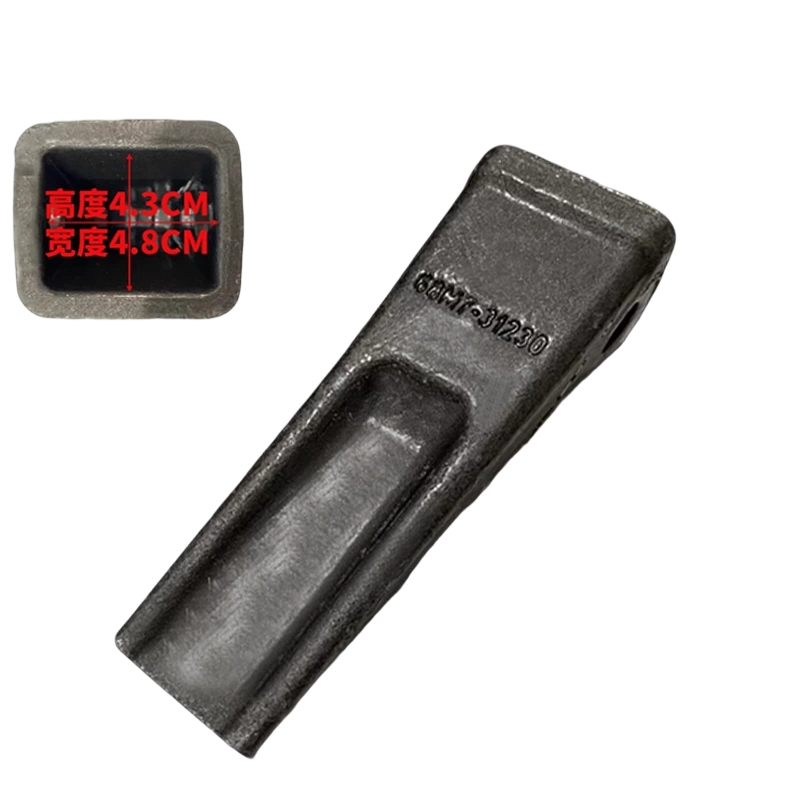

- Standard Dirt Tooth: Ideal for soft soil, clay, and general earthmoving applications.

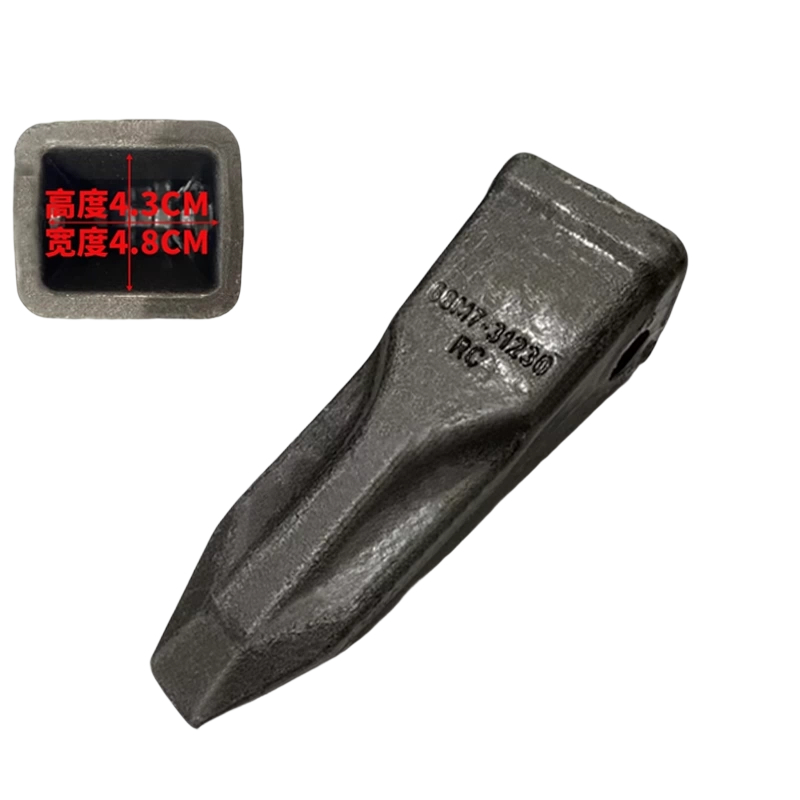

- Rock Penetrator (RC): Specifically designed for hard rock, gravel, and high-impact mining conditions[cite: 1, 2].
- Tiger Tooth/Sharp Point: Recommended for frozen ground or high-penetration requirements[cite: 1].

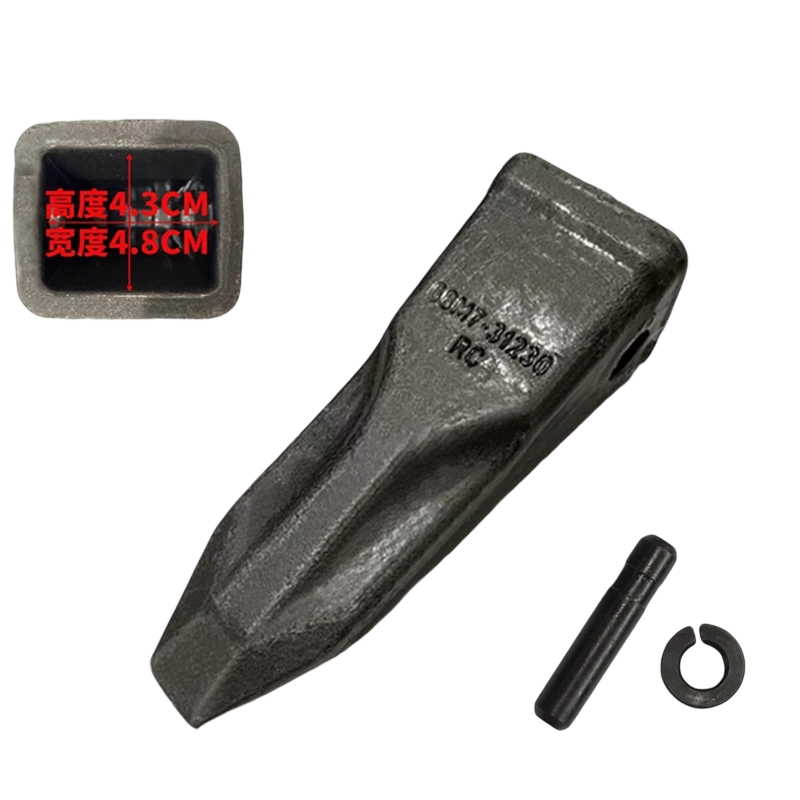

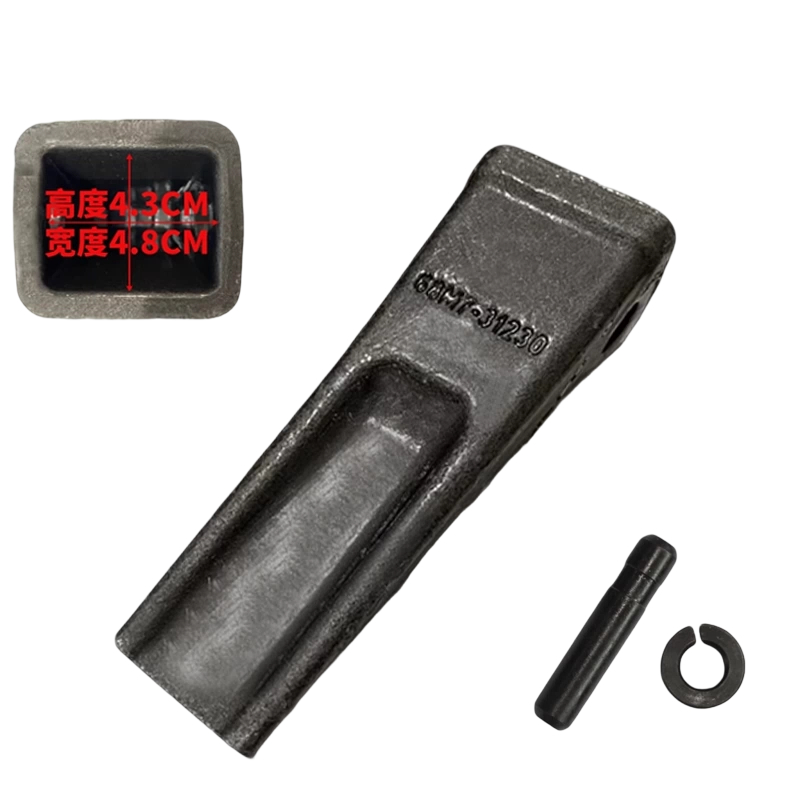

Hardware & Accessories
- Bucket Pin: 14mm x 65mm Heavy Duty Steel Pin[cite: 1, 2]
- Retainer: Durable Rubber/Steel Lock Washer[cite: 1, 2]
